Face Recognition Terminal

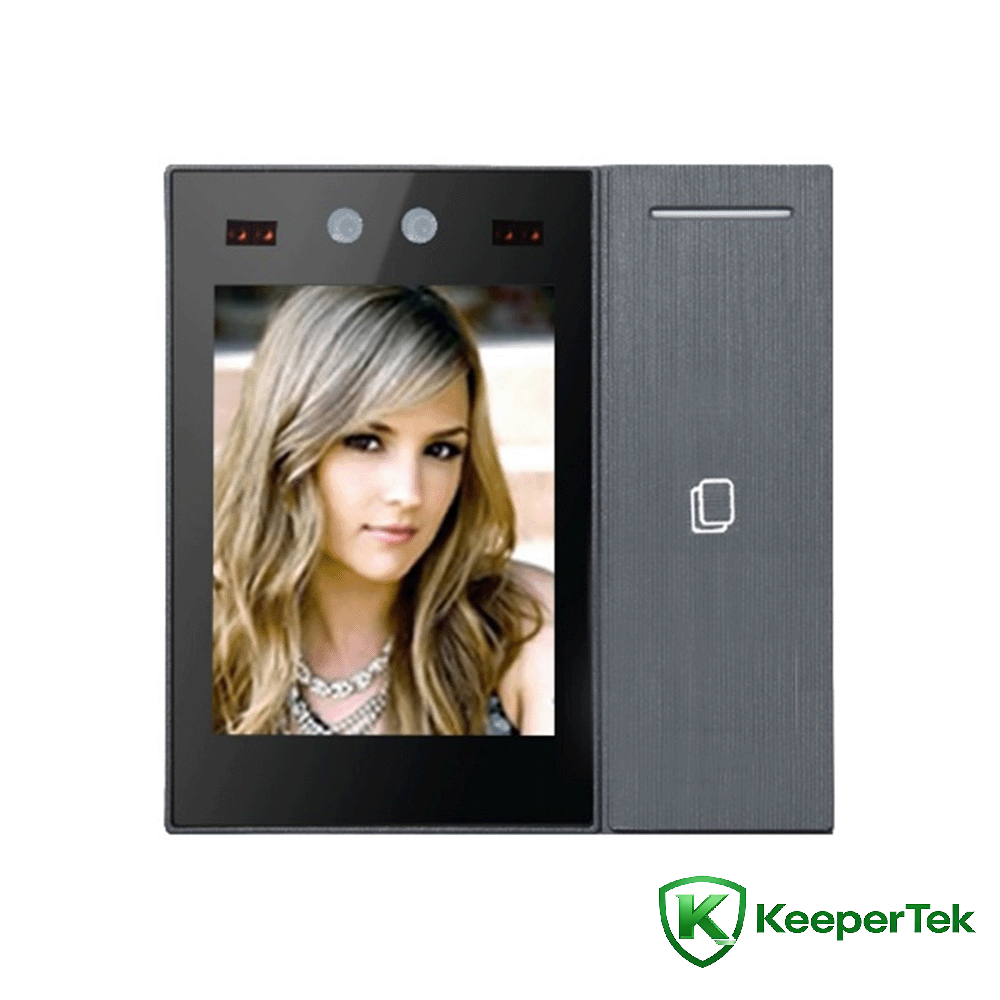

2.8-inch Facial Recognition & Card Reader All-in-One Machine  KT-FR001

Technical Parameters

Processor: High-performance ARM processor

Operating System: Linux OS

Card Reader Module: 13.56MHz frequency band card recognition, supports ISO/IEC 14443 TypeA, optional 125KHz ID card recognition

WiFi Module: 2.4GHz/5GHz WiFi SoC chip, integrated IEEE 802.11a/b/g/n baseband and RF circuit, maximum downlink rate 72.2Mbps

Ethernet: 100Mbps Ethernet port

Display: 2.8-inch LCD screen

Touch: Capacitive touch

Recognition Distance: 0.3~1.5m

Face Angle: ±30° horizontal, ±30° vertical

Recognition Time: <0.5 second

Face Capacity: 2000

Record Capacity: 50000

Power Input: DC12V/1A

Network Interface: 1×100M Ethernet port

Wiegand Interface: 1×Wiegand output

Door Contact Interface: 1×Door contact input

Door Opening Interface: 1×Door opening input

Relay Interface: 1×Relay output

USB Interface: 1×USB2.0 (Type-C)

Camera: Dual-lens camera, visible light and near-infrared, supports live detection

Effective Pixels: 1.0 megapixel

Signal-to-Noise Ratio: ≥50dB (AGC OFF)

Wide Dynamic Range: 100dB, ISP algorithm for local face exposure

Operating Temperature: -10℃ ~ +50℃

Operating Humidity: 10%~90% RH, non-condensing

Device Power: 10W (MAX)

Protection Level: IP42

Power Supply: DC12V/1A

Product Dimensions: 86×86×17mm

Features

Built-in domestic CPU

Supports dual-lens living body detection

Operating temperature: -10℃ ~ +50℃

Adopts Linux operating system for stable system performance

Mean time between failures (MTBF) > 50,000 hours

Supports wired network and WiFi communication

Device supports binding to intelligent access control and attendance management platform by default

Built-in card reader module, supports extended ID card reading function

Built-in three-color indicator light, provides prompts according to verification results

2.8-inch capacitive touch screen, no image ghosting or delay

Supports front-end touch operation and local login for background management, query and configuration

Exclusive face recognition algorithm for accurate recognition, recognition time < 0.5 second

Compact and exquisite design, ideal for entrances and exits of offices and small meeting rooms

Abundant hardware interfaces (USB2.0, relay, door opening input, door contact input, Wiegand output, etc.)
